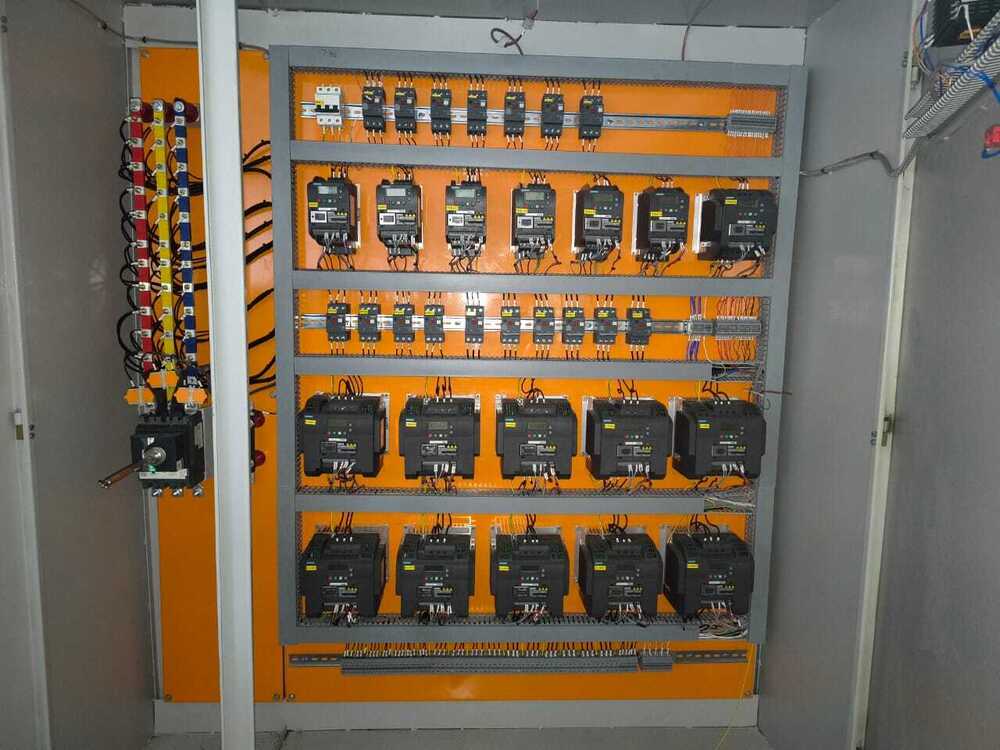

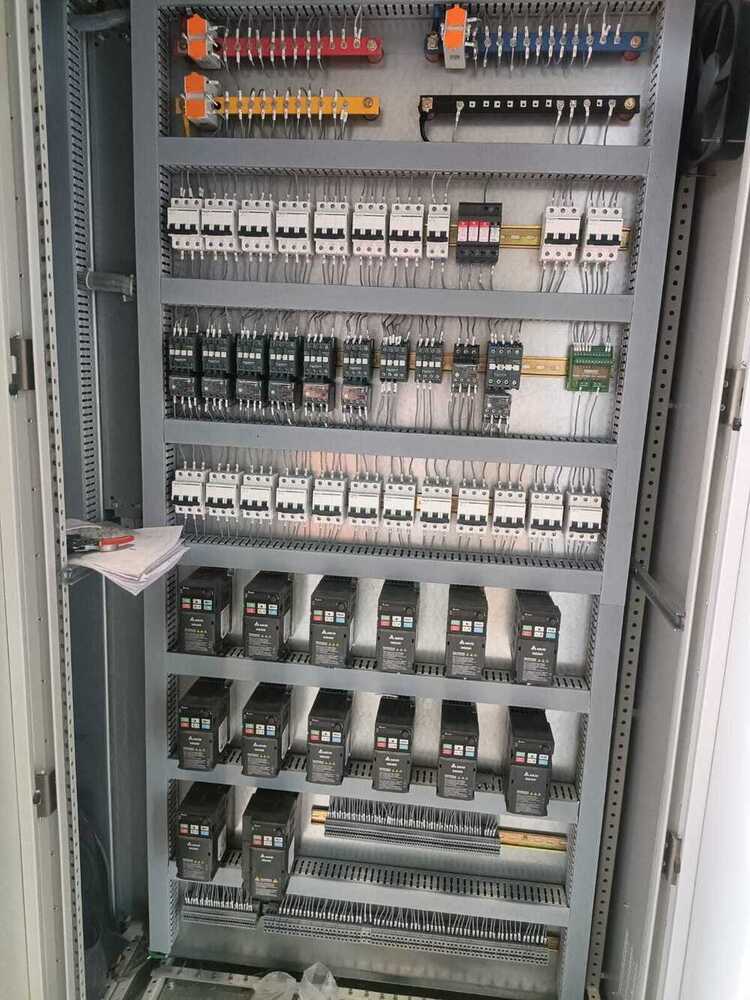

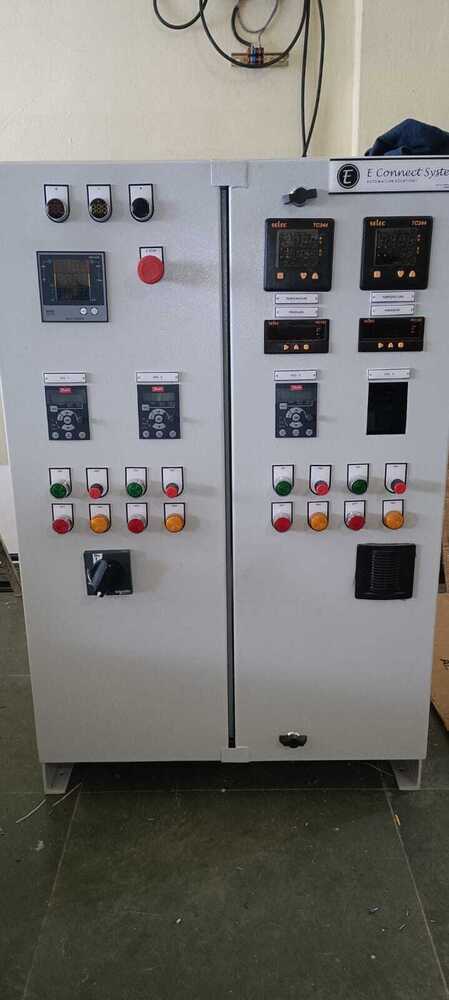

VFD Panel

VFD Panel Specification

Features
Energy Saving, Soft Start/Stop, Overload Protection, Short Circuit Protection

Cooling System
Air Ventilation / Fan Cooled

Rated Insulation Voltage
690V

Control System
PLC Compatible

Panel Type
Floor Mounted

Thickness
1.6 mm

Components
MCB, MCCB, VFD, Contactor, Overload Relay, Indication Lamps

Way
3 Phase

Current Rating
100A

Operating Voltage
415V AC

Rated Operation Voltage
415V

Rated Current
Up to 100A

Protection Level
IP54

Cover Material
Mild Steel Sheet with Glass Window

Connectivity Type
Ethernet/Modbus

Base Material
Mild Steel Sheet

Cabinet Material
Powder Coated Mild Steel

Protection Class
Class I

Product Type
VFD Panel

Material
Mild Steel (MS)

Surface Finish
Powder Coated

Standard
IEC 61439 / IS 8623

Surface Color
Grey

Rated Voltage
415V AC

Frequency (MHz)
50 Hz

Maximum Output Current
100A

Dimension (L*W*H)
1700 x 800 x 500 mm

Application
Industrial Automation / Motor Control

IP Rating
Ip54

Display Type
Digital Display

Communication Ports
RS485, Ethernet

Operating Duty
Continuous

Phase
Three Phase

Control Voltage
24V / 110V / 230V as Required

Enclosure Type
Dust and Moisture Proof

Cable Entry
Bottom / Top Cable Entry Option

Panel Frequency
50/60 Hz

Busbar Material
Electrolytic Copper

Mounting Type
Floor Mounted

Safety Interlock
Door Interlock Switch Provided

Humidity
Up to 90% RH Non-Condensing

VFD Compatibility
Compatible with Reputed Brands (Siemens, Schneider, ABB, etc.)

Cooling Type
Forced Air

Ambient Temperature
0C to 50C

VFD Panel Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
10 Units Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About VFD Panel

Experience the wondrous efficiency of our Floor Mounted VFD Panel-acclaimed for its reliability and advanced features. Now available for a limited time at a reduced price, this ultimate panel boasts lustrous durability with a powder-coated mild steel enclosure and Class I protection. It is compatible with renowned VFD brands (Siemens, Schneider, ABB, and more), offering robust industrial automation and motor control solutions. Features like soft start/stop, overload and short-circuit protection, and energy saving make it a trusted choice across demanding applications. Secure one now and power your systems with confidence.

Unmatched Features and Versatility for Industrial Plants

Our VFD Panel stands out with extraordinary features like programmable soft start/stop, PLC compatibility, and energy-saving controls. It seamlessly integrates with various plant applications, supporting up to 100A and 415V AC. Designed with forced air cooling, a dust and moisture-proof enclosure, and a digital display, it ensures optimal performance in harsh environments. Experience enhanced control and protection for your machinery, making it a top-tier solution for industrial automation and motor control.

Dependable Supply, Swift Delivery, and Export Reach

Expect prompt order processing and assured supply of our VFD Panels, tailored to your requirements. We cater to export markets and offer flexible payment terms for your convenience. With a streamlined delivery process, samples can be made available for your evaluation before bulk purchase. As a leading manufacturer, supplier, and trader in India, we prioritize efficiency and reliability, ensuring your projects receive top-quality panels on time and within budget.

FAQ's of VFD Panel:

Q: How do I choose the correct VFD Panel configuration for my application?

A: Selecting the right VFD Panel involves assessing your control voltage requirements, current rating, and preferred cable entry. Our panels support customized configurations to suit diverse industrial applications.

Q: What safety features are included in the VFD Panel design?

A: The panel comes equipped with overload protection, short circuit protection, a door interlock switch, and IP54-rated dust and moisture proof enclosure to ensure safe and reliable operation.

Q: Where can the VFD Panel be installed?

A: This panel is designed for floor mounting and can be installed in industrial settings requiring robust motor control and automation, ensuring compatibility with harsh ambient conditions and high humidity.

Q: What is the usage benefit of having PLC compatibility in the VFD Panel?

A: PLC compatibility enables seamless integration with industrial control systems, allowing for efficient, automated process management and real-time monitoring of operations.

Q: How does the order and delivery process work for export markets?

A: We process orders efficiently, offer sample availability for large projects, and facilitate swift delivery globally, ensuring all export requirements and documentation are met for seamless transactions.
